HK Sensi Technology Co., Limited

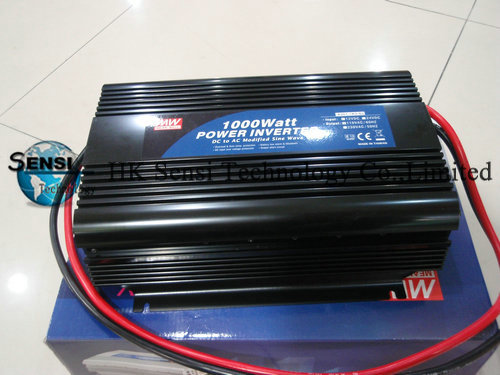

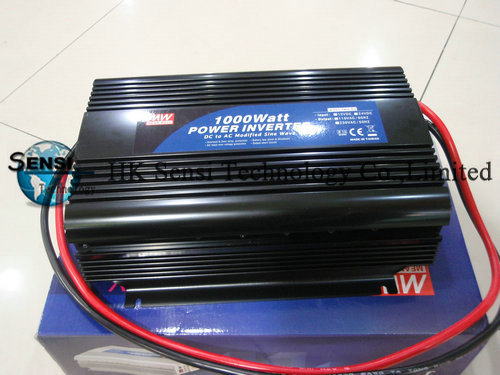

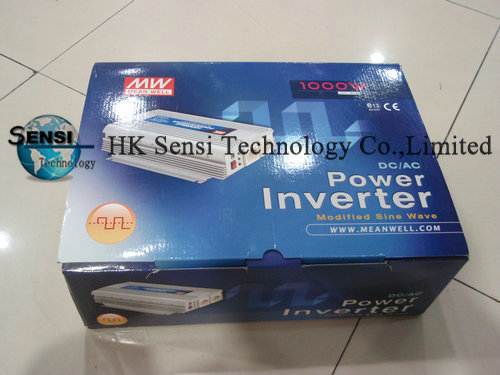

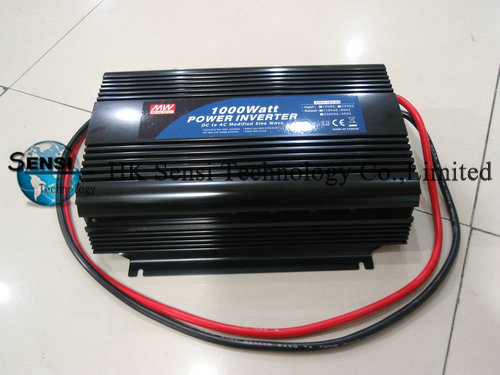

A301-1K0-B2 1000W MEAN WELL Power inverter New and Original

Part Number:

A301-1K0-B2

Brand:

MEAN WELL

Min.Order Quantity:

1/pieces

Port:

Shenzhen

Payment Terms:

T/T, paypal, Western Union

PDF Down

Product Details
Transaction Details

#	Attribute	Parameter
1	Origin	Taiwan
2	Input Voltage	12VDC
3	Output Voltage	110VAC
4	RATED POWER	1000W
5	DC CURRENT	110A
6	Warranty	one year

1000W Modified Sine Wave DC-AC Power Inverter A-301/302-1K0 series
Features :
• 12V or 24V DC input
• Power ON-OFF switch
• Input voltage range: -15% ~ +25%
• Output voltage regulation: 10%
• Protections: Bat. Low alarm/Bat. Low shutdown/Over voltage/
• Over temp./Output shout/Input polarity reverse/Over load.
• Output waveform: Modified sine wave
• ON/OFF remote control(Optional)
• Approvals: e13/ CE
• 1 year warranty

150W
A301-150-B2
A301-150-F3
A302-150-B2
A302-150-F3

300W
A301-300-B2
A301-300-F3
A302-300-B2
A302-300-F3
600W
A301-600-B2
A301-600-F3
A302-600-B2
A302-600-F3

1000W
A301-1K0-B2
A301-1K0-F3
A302-1K0-B2
A302-1K0-F3

1500W
A301-1K7-B2
A301-1K7-F3
A302-1K7-B2
A302-1K7-F3

2500W
A301-2K5-B4
A301-2K5-F3
A302-2K5-B4
A302-2K5-F3
