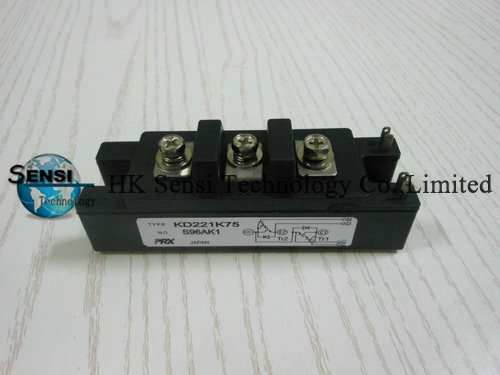

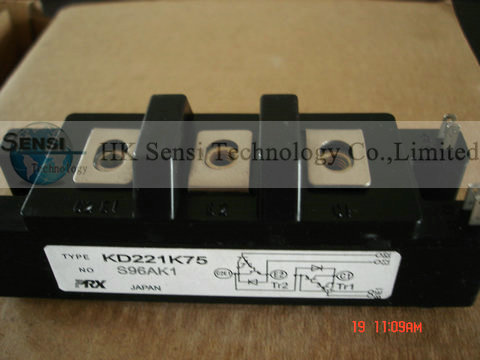

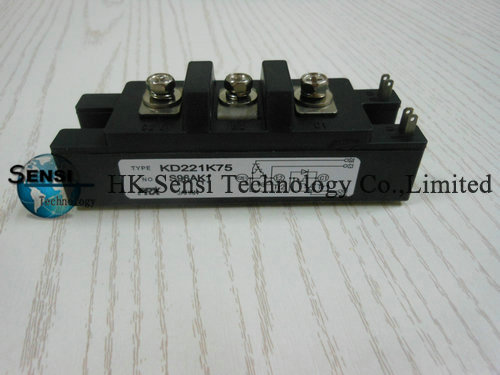

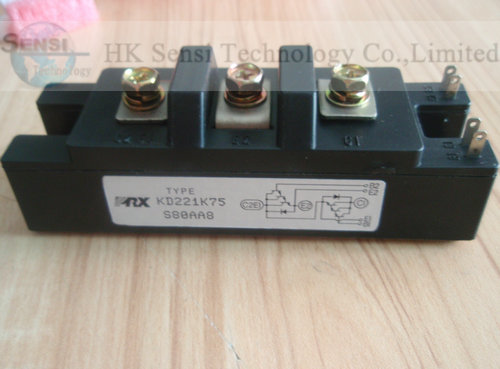

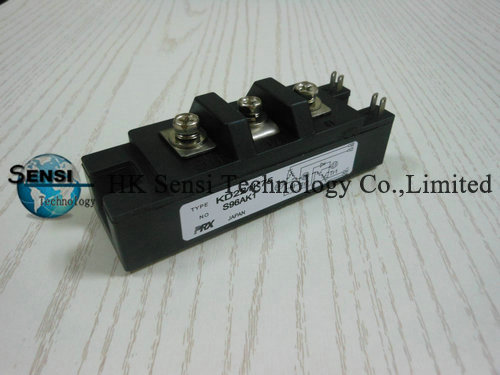

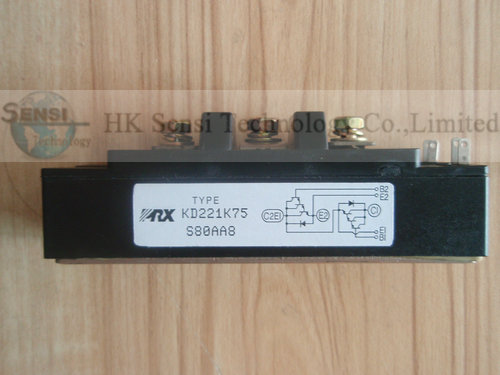

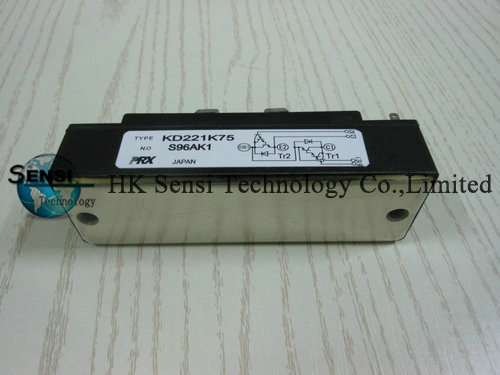

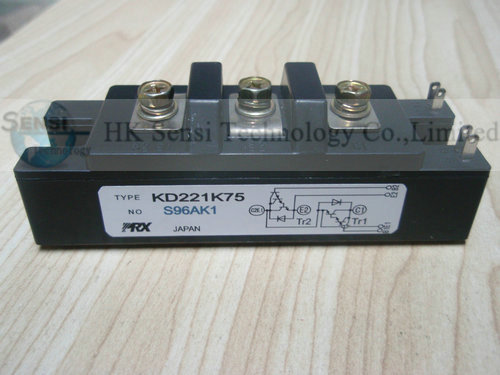

POWEREX(PRX) IGBT MODULE

HIGH POWER SWITCHING USE
INSULATED TYPE

Description:
POWEREX(PRX) IGBT Modules are designed for use in switching applications. Each module consists of one IGBT in a single configuration with a reverse-connected super- fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

POWEREX(PRX) IGBT MODULE
Features:
• Low Drive Power
• Low VCE(sat)
• Discrete Super-Fast Recovery
• ree-Wheel Diode
• High Frequency Operation
• Isolated Baseplate for Easy
• Heat Sinking

Applications:
• AC Motor Control
• Motion/Servo Control
• UPS
• Welding Power Supplies

More Models:
JS225010 KD221K05 KD221K75 KD224575 KD421K10 KD421K15 KD424520HB KS221K10 KS324520 LD431650
