General Description

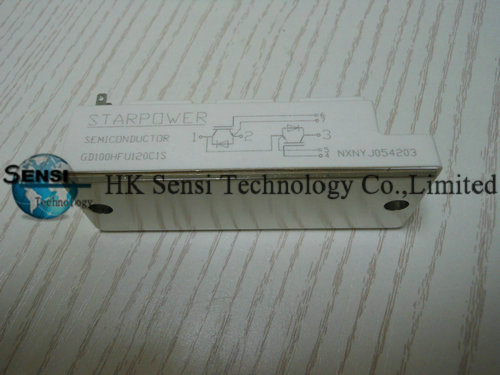

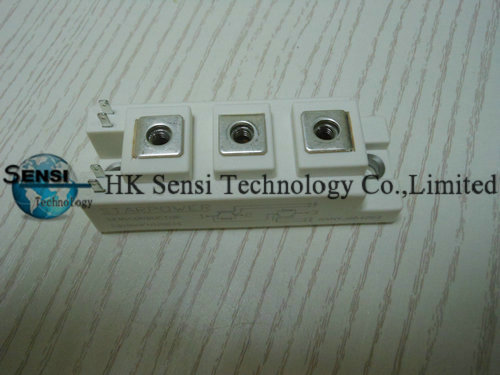

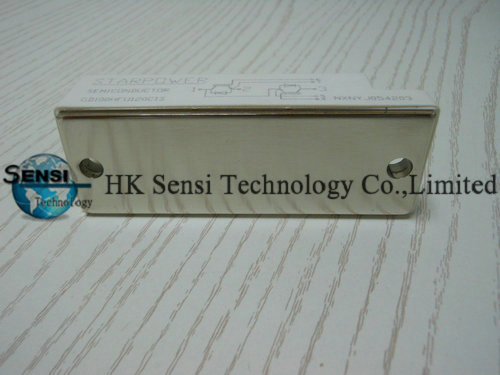

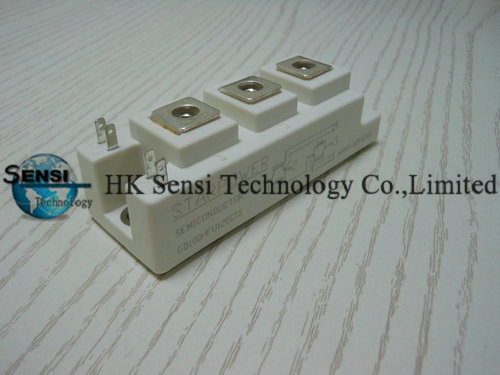

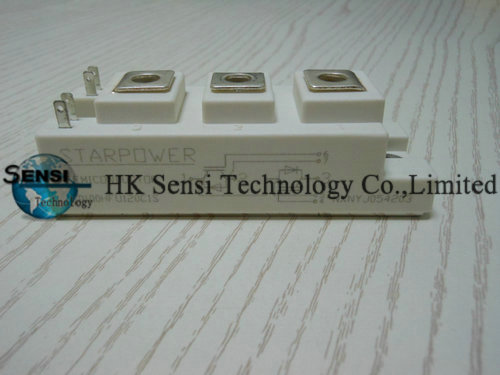

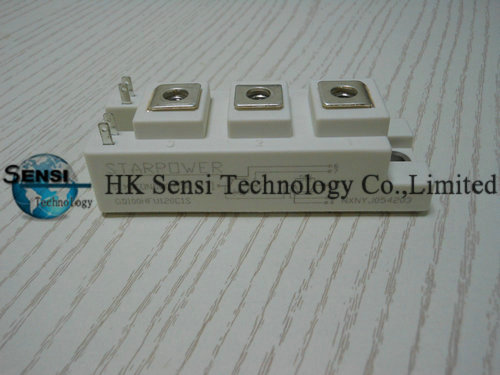

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.  They are designed for the applications such as UPS and SMPS.

Features:
• Low VCE(sat) trench IGBT technology
• 5μs short circuit capability
• VCE(sat) with positive temperature coefficient
• Maximum junction temperature 175℃
• Low inductance case
• Fast & soft reverse recovery anti-parallel FWD
• Isolated copper baseplate using DBC technology

Typical Applications:
• Electronic welders
• Switching mode power supplies
• Uninterruptible power supply
