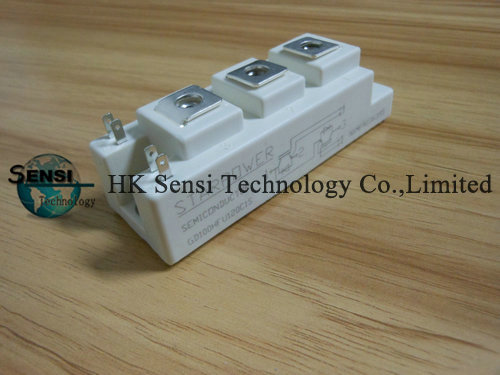

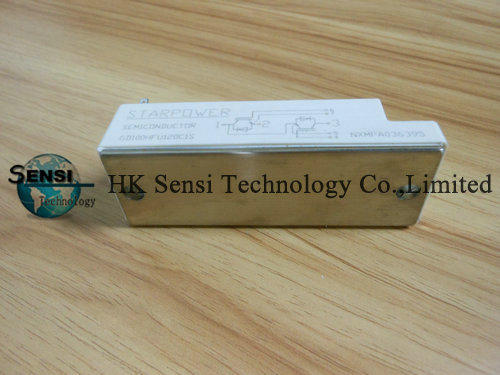

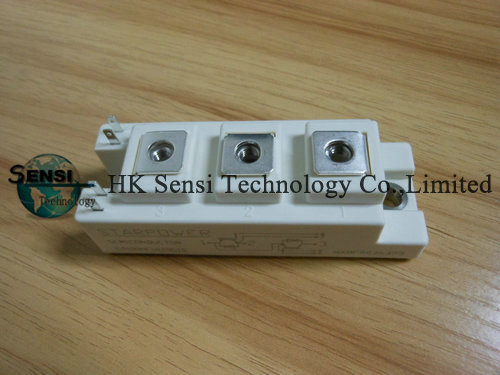

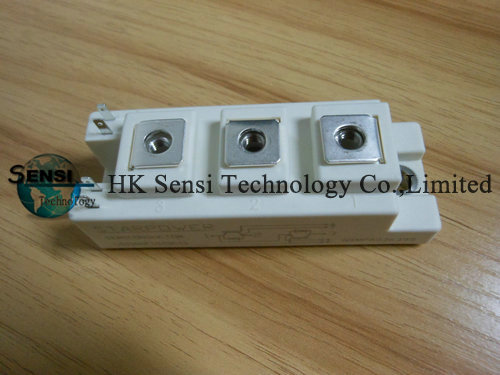

GD100HFU120C1S STARPOWER Welding machine IGBT module in stock
GD100HFU120C1S
1/pieces
Shenzhen
T/T, paypal, Western Union
PDF Down
| # | Attribute | Parameter |
|---|---|---|
| 1 | Origin | made in China |
| 2 | Installation | Screw Terminal Type |
| 3 | Operating temperature range | – 40 to +125°C |
| 4 | Storage temperature range | – 40 to +130°C |
| 5 | Warranty | half year |
General Description
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as UPS and SMPS.
Features:
• Low VCE(sat) trench IGBT technology
• 5μs short circuit capability
• VCE(sat) with positive temperature coefficient
• Maximum junction temperature 175℃
• Low inductance case
• Fast & soft reverse recovery anti-parallel FWD
• Isolated copper baseplate using DBC technology
Typical Applications:
• Electronic welders
• Switching mode power supplies
• Uninterruptible power supply
2MBI150NT-120 BSM150GB100D BSM300GA120DN2F BSM50GX120DN2 CM100E3U-12H CM200HA-12H CM300EC3U-12H CM400HU-24F F4-100R06KL4 FMG2G150US60E
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as UPS and SMPS.
Features:
• Low VCE(sat) trench IGBT technology
• 5μs short circuit capability
• VCE(sat) with positive temperature coefficient
• Maximum junction temperature 175℃
• Low inductance case
• Fast & soft reverse recovery anti-parallel FWD
• Isolated copper baseplate using DBC technology
Typical Applications:
• Electronic welders
• Switching mode power supplies
• Uninterruptible power supply
2MBI150NT-120 BSM150GB100D BSM300GA120DN2F BSM50GX120DN2 CM100E3U-12H CM200HA-12H CM300EC3U-12H CM400HU-24F F4-100R06KL4 FMG2G150US60E
