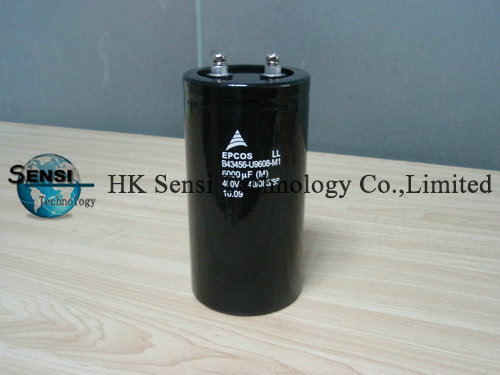

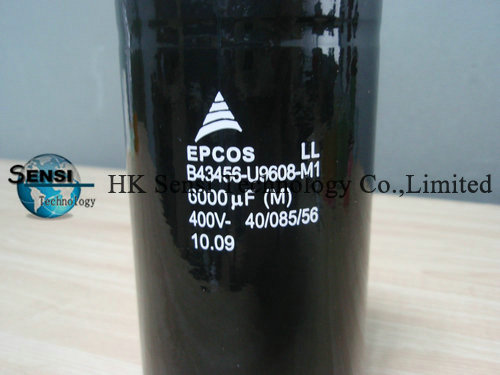

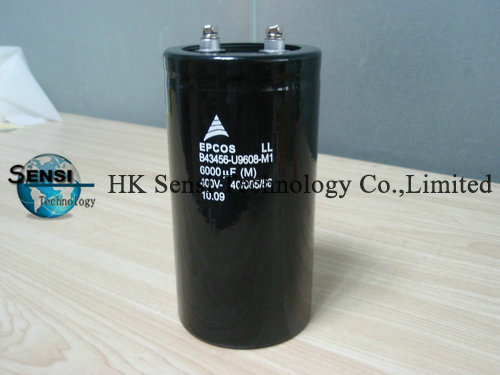

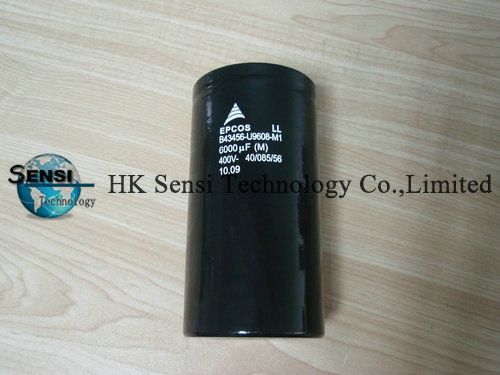

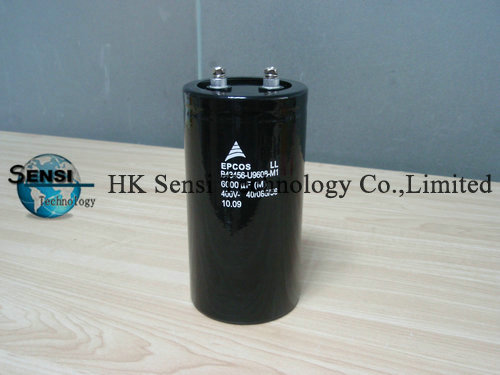

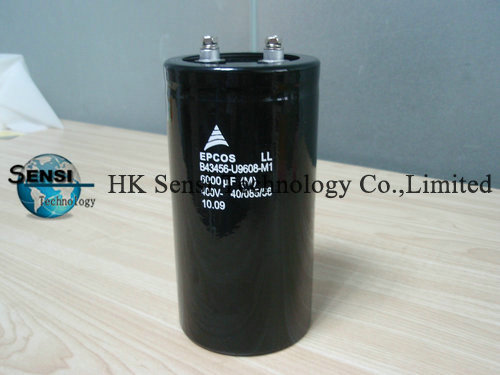

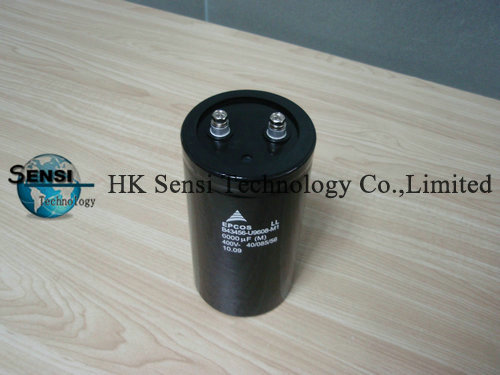

EPCOS Aluminum electrolytic capacitors
Capacitors with screw terminals

Long-life grade capacitors

Features
• High CV product, i.e. extremely compact
• High reliability and high ripple current capability
• All-welded constructions ensures reliable electrical contact
• Version with optimized construction for base cooling (heat sink mounting) available
• Version with low-inductance design available
• RoHS-compatible

Construction
• Charge-discharge proof, polar
• Aluminum case with insulating sleeve
• Poles with screw terminal connections
• Mounting with ring clips, clamps or threaded stud
• The bases of types with threaded stud and d <= 76.9 mm are not insulated, types with d = 91 mm have fully insulated bases

Applications
• Frequency converters
• Professional power supplies
• Uninterruptible power supplies

B43456-A9129-M 1200uF 400V B43456-S9508-M11 5000uF 400V B43456-S9758-M1 7500uF 400V S+M M6 B43456-U9688-M1 6800uF 400V B43564-S9488-M1 4800uF 400V B43564-S9578-M1 5700uF 400V B43566-U9278-M1 2700uF 400V B43584-S5338-Q 33300uf 450V B43586-S4478-Q2 4700uF 350V B43586-S9418-Q1 4100uF 400V M6
