EPCOS Aluminum electrolytic capacitors
Capacitors with screw terminals

Long-life grade capacitors

Features
• High ripple current capability
• Long useful life
• High reliability
• Extremely good electrical characteristics and small dimensions
• All-welded construction ensures reliable electrical contact
• Version with optimized construction for base cooling (heat sink mounting) available
• Version with low-inductance design available
• Self-extinguishing electrolyte

Construction
• Charge-discharge proof, polar
• Aluminum case with insulating sleeve
• Poles with screw terminal connections
• Mounting with ring clips, clamps or threaded stud
• The bases of types with threaded stud and d <=76.9 mm are not insulated, types with d = 91 mm have fully insulated bases

Applications
• Frequency converters
• Professional power supplies
• Uninterruptible power supplies

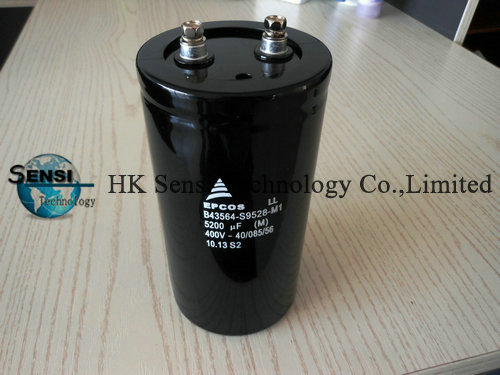

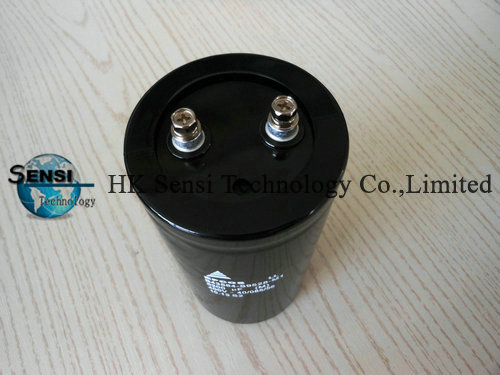

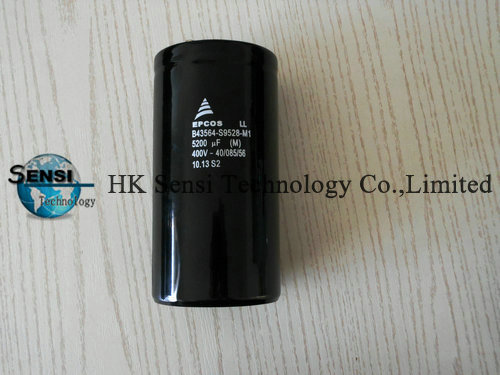

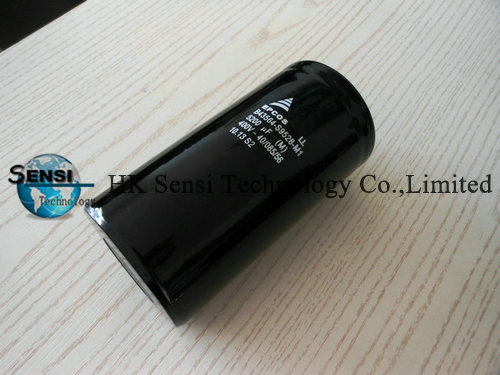

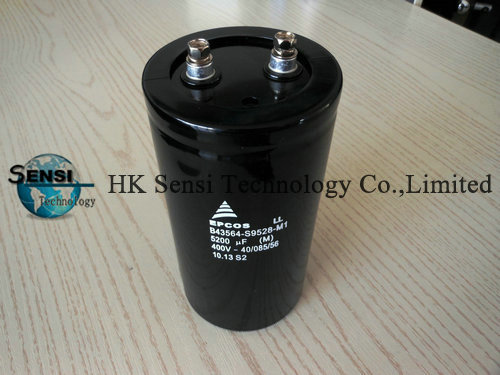

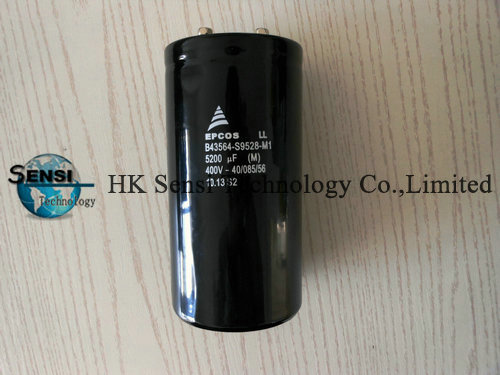

B43456-S9508-M1 5000uf 400v 76.9x143.2mm B43456-S9758-M1 7500uF 400V M5 B43456-S9758-M1 7500uF 400V M6 B43456-S9758-M1 7500uF 400V S+M M6 B43456-U9478-M1 4700uF 400V B43564-S9428-M1 4200uF 400V B43564-S9528-M1 5200uF 400V B43564-S9578-M1 5700uF 400V B43566-U9278-M1 2700uF 400V B43586-S9418-Q1 4100uF 400V M5
