EPCOS Aluminum electrolytic capacitors
Capacitors with screw terminals

Long-life grade capacitors

Features
• Extended useful life, high reliability

• Good electrical characteristics and small dimensions

• Extremely high ripple current capability

• All-welded construction ensures reliable electrical contact

• Version with optimized construction for base cooling (2-pad solution) available

• Version with low-inductance design available

• Self-extinguishing electrolyt

Construction
• Charge-discharge proof, polar
• Aluminum case with insulating sleeve

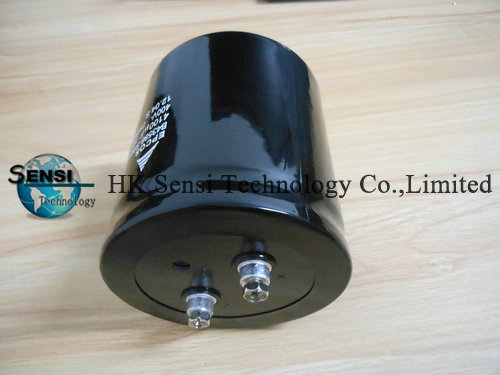

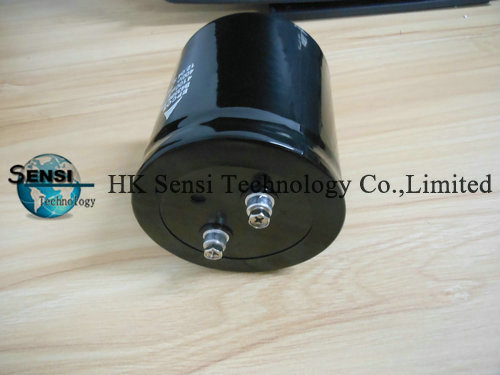

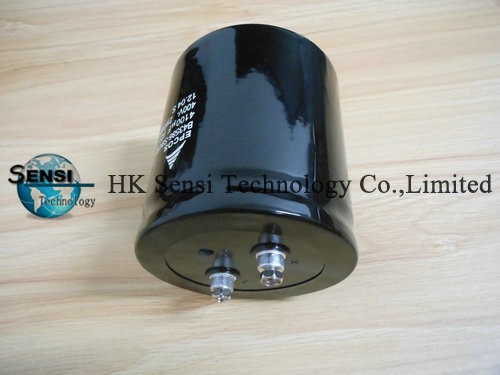

• Poles with screw terminal connections
• Mounting with ring clips, clamps or threaded stud
• The bases of types with threaded stud and d <=76.9 mm are not insulated, types with d = 91 mm have fully insulated bases

Applications
• Frequency converters

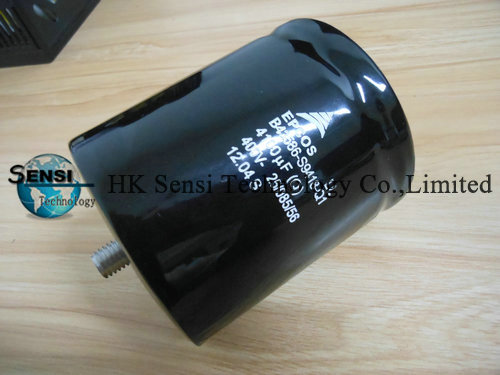

B41876-S9478-M1 4700uF 400V B43456-S9508-M1 5000uf 400v 76.9x143.2mm B43456-S9758-M1 7500uF 400V S+M M6 B43456-U9478-M1 4700uF 400V B43456-U9608-M1 6000uF 400V B43564-S9488-M1 4800uF 400V B43566-U9278-M1 2700uF 400V B43586-S4478-Q2 4700uF 350V B43586-S9418-Q1 4100uF 400V M6 B43586-S9578-Q1E 5700uF 400V
