Schneider miniature circuit breakers

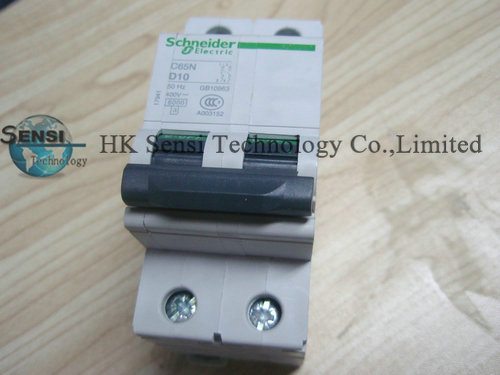

C65N circuit-breakers

6 kA,  B,C,D curve

IEC 60898 / GB 10963

circuit-breakers up to63 A

functions

The circuit-breakers combine the following functions:

● protection of circuits against short-circuit currents,

● protection of circuits against overload currents,

● control,

● isolation

● protection of persons against indirect contact.



Description

technical data common to C65N circuit breakers

● power circuit

○ voltage rating: 230/400 V AC

- for 2P single phase 400V

○ I2t classification: 4

○ foolproof terminal design

- moving barrier prevents incorrect cable insertion

- cable strand centering guides ensure correct cable positions and strand grouping

○ isolation with positive contact indication

○ bistable din clip, simplifies disassembly



● environment

○ tropicalisation: treatment 2 (relative humidity: 95 % at55 °C)

○ connection: tunnel terminals for the following cables:

  - up to25A:16mm2 flexible with cable end :25mm2 stranded

- 32 to63A:25mm2 flexible with cable end :35mm2 stranded



B curve

utilisation

when there are small inrush currents

(generators, long cables).

technical data

● power circuit

○ tripping curve:

the magnetic trip units operate between 3 and5 In.



C curve

utilisation

cables feeding conventional loads.

technical data

● power circuit

○ tripping curves: the magnetic trip unit operates between 5 and10 In



D curve

utilisation

loads with a high inrush current

(motors, transformers).

technical data

● power circuit

○ tripping curve:

the magnetic trip units operate between 10 and14 In.



○ breaking capacity

- according to IEC 60898 / GB 10963 Icu ultimate breaking capacity (0-C0 cycle):



Rating (A)	Type	Voltage (V)	Breaking capacity Icu (A)
1...63	1P	230	6000
	2P	400	6000
	3P	400	6000
	4P	400	6000
