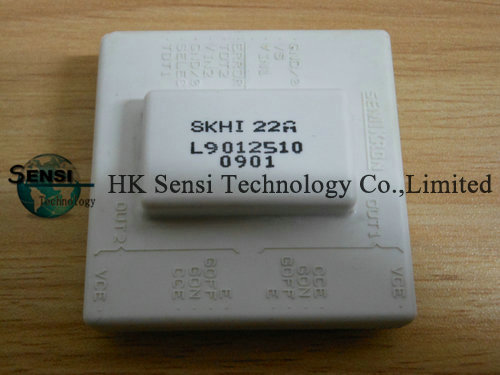

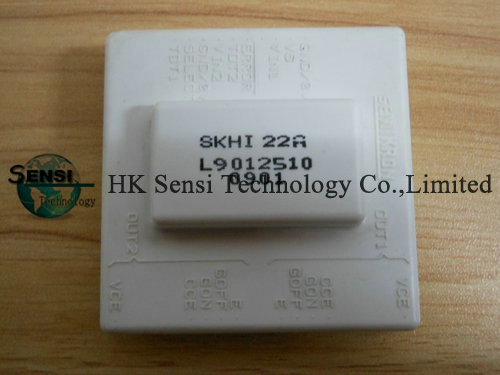

SEMIKRON SKHI22A / SKHI22B
Hybrid Dual IGBT Driver
Features
• Double Driver for halfbridge IGBT modules
• SKHI22A is compatible to old SKHI22
• SKHI22B has additional functionality
• CMOS compatible inputs
• Short circuit protection by Vce monitoring and switch off
• Drive interlock top/bottom
• Isolation by transformers
• Supply undervotage protection(13V)
• Error latch / output

Typical Applications
• Driver for IGBT modules in Bridge circuits in choppers, inverter drives, UPS and whelding inverters
