Schneider (Telemecanique) TeSys Model D Contactors and Overload Relays

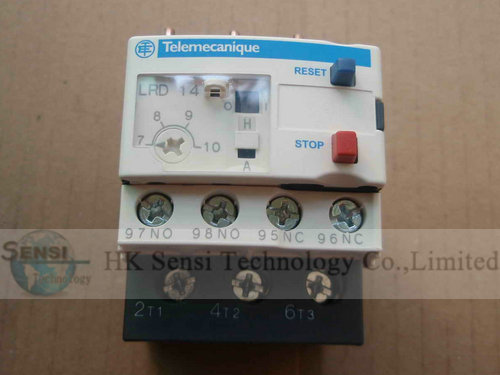

LRD Overload Relay

Key Features

• Class 10 or class 20 bimetallic overload for better motor protection.

 • Ambient compensated with or without single-phase sensitivity for phase unbalance and phase loss.

 • Isolated N.C. trip contact and N.O. alarm contact.

 • Manual or automatic reset function.

 • Tamper resistant window for FLA settings.

 • Test trip button.

 • Optional remote electrical reset.

 • CSA, UL and international certifications.

LR97D07M7 1,2-7A 220VAC LR97D25M7 5-25A 220VAC LR97D38M7 20-38A 220VAC LRD12C LRD14C LRD21C LRD22C LRD32C LRD3355C LT4760M7S
