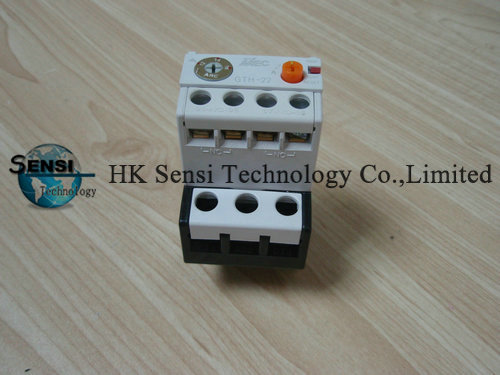

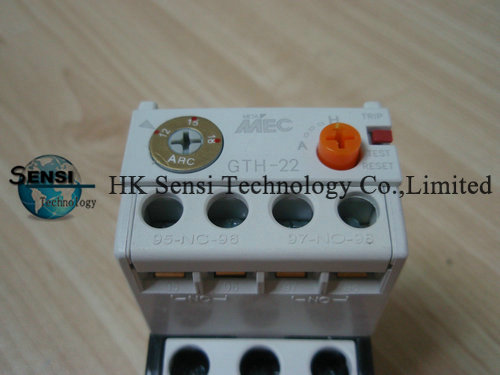

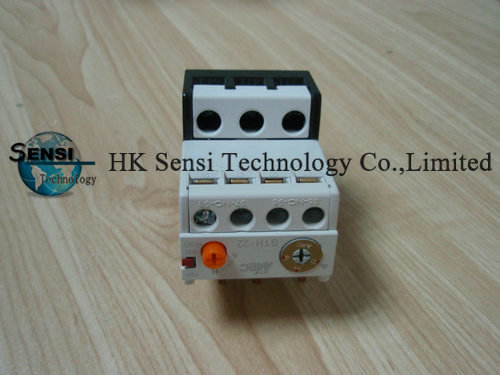

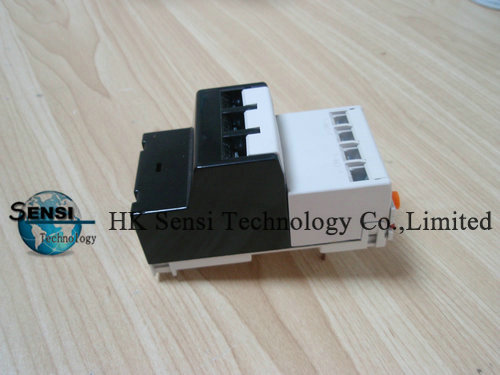

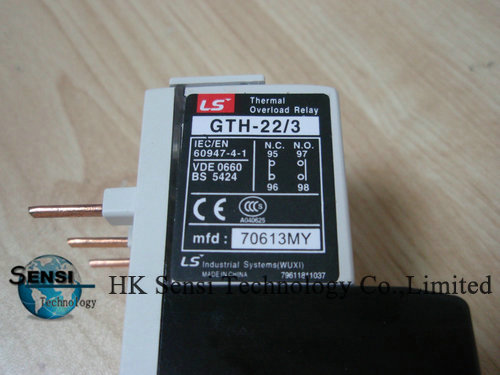

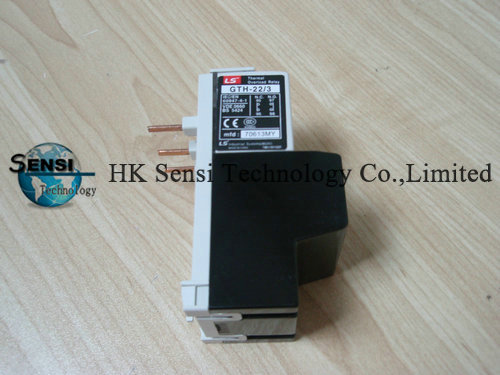

LS Thermal Overload Relay

Features:

- Direct mount on the GM-9, 12, 18, 22 contactors (9, 12, 18, 22A frames)

- DIN rail or screw mountable with the optional base AZ-22H

- Small physical size : 44 mm wide

- 1NO+1NC trip contacts

- Trip class 10A

- Differential current/Phase failure protection : GTK types

- Non-differential GTH types are available for the economic solution

- Ambient compensated  -5 to 40℃

- Manual/Automatic reset

- Trip free design

- Bimetallic style

More Models:

GTH-22/3∙0.14

GTH-22/3∙0.21

GTH-22/3∙0.33

GTH-22/3∙0.52

GTH-22/3∙0.82

GTH-22/3∙1.3

GTH-22/3∙2.1

GTH-22/3∙3.3

GTH-22/3∙5

GTH-22/3∙6.5

GTH-22/3∙7.5

GTH-22/3∙8.5

GTH-22/3∙11

GTH-22/3∙15

GTH-22/3∙19
